Premium Power Distribution Solutions

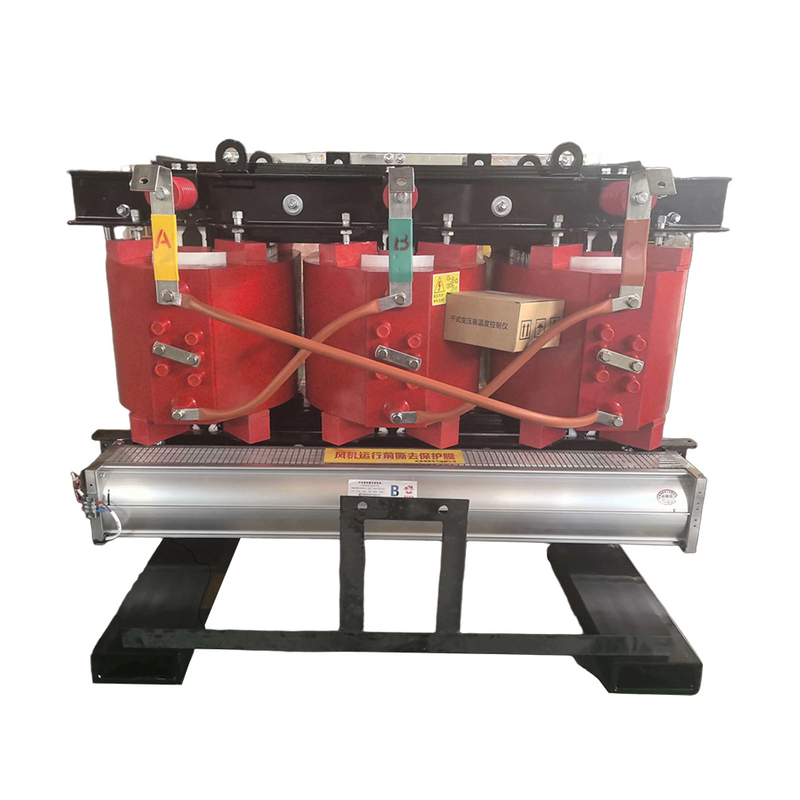

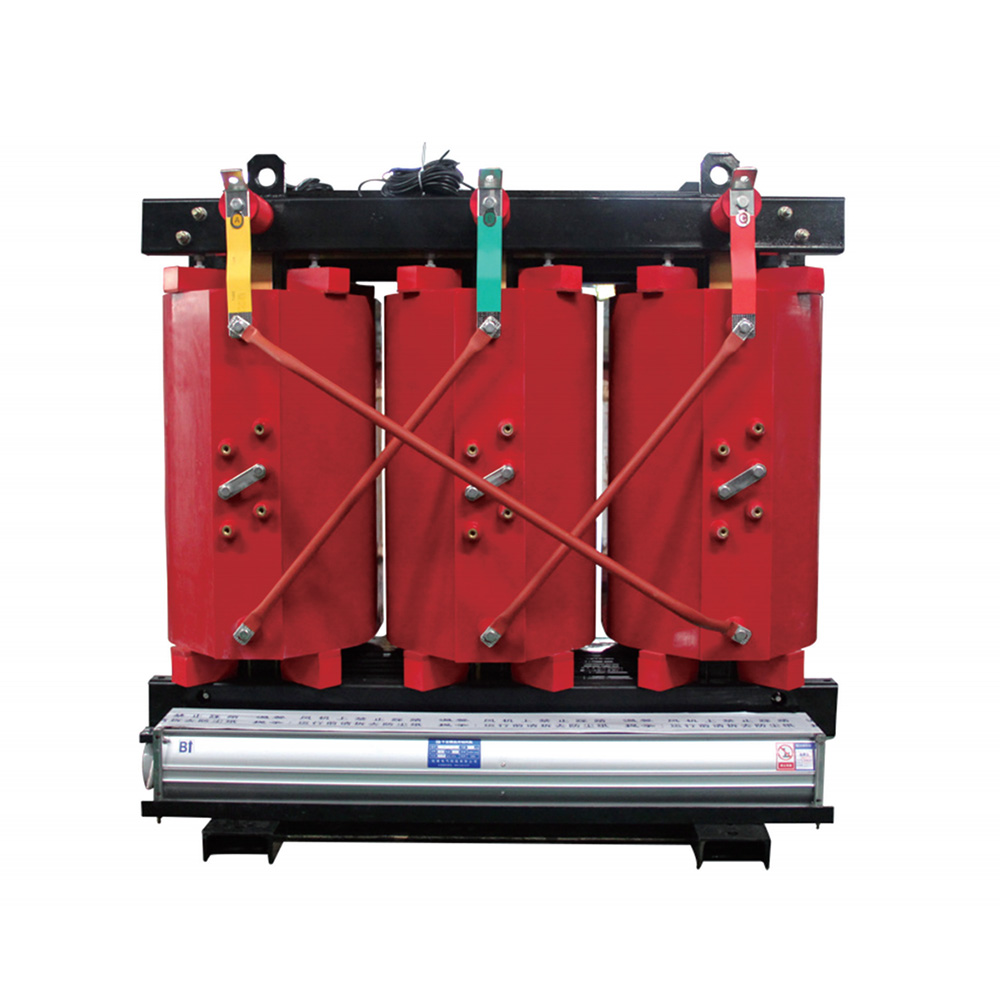

Our Resin-Insulated Dry-Type Transformers are meticulously engineered to deliver exceptional performance and unwavering reliability in demanding electrical networks. Designed with an uncompromising focus on safety, these modern units utilize advanced epoxy resin casting techniques to ensure superior operational stability across various applications. By eliminating the traditional need for insulating oil, our transformers provide a cleaner, highly resilient, and low-maintenance power distribution solution suitable for diverse industrial environments. We actively support professional custom configurations to precisely meet the specific capacity requirements of our enterprise clients worldwide.
The low-voltage coils within our units are precisely wound using premium copper wire or highly conductive copper foil, carefully selected depending on the required transformer capacity. We utilize top-grade epoxy resin for meticulous bubble-free casting under strict vacuum conditions to ensure flawless solid insulation. Additionally, all coil ends are securely sealed with epoxy resin to maintain long-term structural integrity.
The central core is manufactured from high-quality, high-permeability, and exceptionally low-loss cold-rolled grain-oriented silicon steel sheets. It features a precise 45° full-bevel joint and an advanced five-step stacking structure to optimize magnetic flux. Furthermore, the core columns are tightly bound with high-strength insulating tape, which guarantees long-lasting mechanical tightness and overall operational stability.
During the careful assembly process with the core, both the high-voltage coils and low-voltage coils are firmly supported by specialized elastic pads. This specific structural choice provides excellent vibration damping throughout the unit's lifespan. By absorbing mechanical shocks, it ensures outstanding resistance to sudden electrical impacts, protecting the internal components from potential deformation.
Engineered for maximum resilience in unpredictable environments, our transformers are designed to effectively withstand severe electrical faults. The integrated elastic pad support system significantly mitigates mechanical stress across the entire assembly. This crucial feature provides exceptional short-circuit resistance, ensuring the equipment continues to operate safely under extreme network stress.
Operating flawlessly under severe overvoltage conditions, the high-quality casted resin creates an impenetrable barrier that prevents critical electrical breakdowns. This highly reliable solid insulation system effectively extends the overall lifespan of the power equipment. It maintains consistent and safe power delivery, even in environments where electrical anomalies might otherwise compromise lesser insulated systems.
Our meticulous bubble-free casting process entirely eliminates microscopic air pockets within the insulation material. This rigorous manufacturing standard effectively prevents internal partial discharges over time. By maintaining a uniform and solid dielectric structure, the safety, efficiency, and long-term durability of our power equipment are significantly enhanced for continuous heavy-duty use.
By utilizing solid insulation materials instead of combustible liquids, our dry-type models completely eliminate the risk of oil leaks and associated environmental hazards. This inherently secure design makes them highly suitable for indoor installations and critical infrastructure projects where strict fire safety compliance is a non-negotiable requirement.
Without the need for regular oil sampling, fluid replacements, or leak inspections, facility managers can significantly reduce ongoing equipment maintenance costs. The robust sealed coil design effectively protects the sensitive internal electrical components from moisture and environmental degradation, guaranteeing a prolonged service life with minimal human intervention.
These robust units are absolutely essential for heavy manufacturing plants requiring highly stable and uninterrupted power distribution. Their strong mechanical integrity ensures continuous factory operations even during heavy load fluctuations, providing the dependable energy backbone necessary for running large-scale machinery and automated production lines efficiently.
Our dry-type models are perfectly suited for densely populated high-rise buildings, underground transit systems, and modern shopping centers. Because safety regulations strictly prohibit oil-filled equipment in these environments, our dry solutions ensure continuous, hazard-free power delivery for critical public systems and essential commercial activities.
We provide tailored transformer designs to perfectly match your specific project specifications and spatial constraints. Our dedicated engineering team works closely with enterprise clients to deliver high-quality custom solutions that integrate seamlessly into existing electrical grids, ensuring optimal performance and absolute operational compatibility.
With a highly comprehensive catalog, we supply an extensive range of transformer capacities to meet diverse industry demands. Our experienced support team ensures that you receive the exact technical specifications needed for efficient power management, backing every purchase with reliable manufacturing expertise and prompt wholesale delivery.
Our low-voltage coils are meticulously wound with either copper wire or copper foil based on capacity, and completely cast with high-quality epoxy resin under vacuum conditions.
The core utilizes high-permeability cold-rolled grain-oriented silicon steel sheets with a 45° full-bevel joint and five-step stacking, effectively reducing magnetic loss and improving efficiency.
Yes, we specialize in professional customization for all our dry-type models, precisely matching the specific voltage and capacity requirements of your unique industrial applications.
During the core assembly, both high and low-voltage coils are heavily supported by elastic pads, which provide critical vibration damping and structural protection against sudden electrical impacts.
