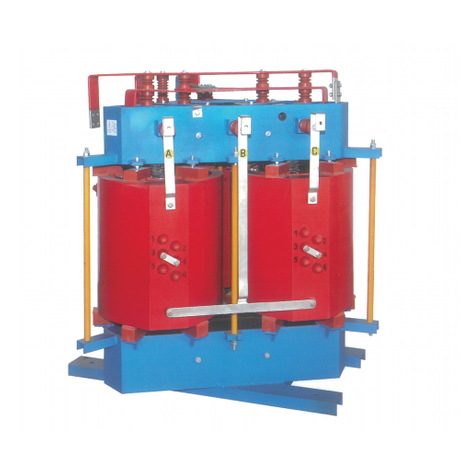

Selecting a transformer represents a high-stakes capital expenditure decision for any major energy infrastructure project. Specifying the wrong unit inevitably leads to catastrophic efficiency drops, severe grid instability, and massive daily operational bottlenecks. You simply cannot afford to mismatch your electrical equipment. Both equipment types effectively step electrical voltages up or down across the utility grid. However, their internal engineering designs cater to completely different load profiles and specific physical network positions. A unit built for continuous power generation will fail under volatile neighborhood loads. This guide delivers a rigorous engineering and procurement-focused breakdown to streamline your next specification process. We will explore deep technical parameters, core design differences, and complex physical footprint requirements. You will learn exactly how to align your specific technical requirements with the proper hardware layout. Ultimately, we ensure you make a confident, technically sound procurement decision.
Network Position: Power transformers act as transmission and grid transformers (high voltage >33kV), while distribution transformers serve end-user networks (low/medium voltage<33kV).
Efficiency Design: Power transformers are engineered for peak efficiency at 100% load; distribution transformers are optimized for 50–70% load due to fluctuating daily demand.
Loss Profile: Distribution transformers prioritize minimizing continuous iron (core) losses, whereas power transformers focus on managing copper losses at maximum capacity.
Physical Footprint: Power transformers require complex, custom cooling infrastructure and massive installation footprints compared to modular, standardized distribution units.
Engineers face a distinct infrastructure gap when designing modern electrical grids. Substation design requires isolating continuous heavy loads from wildly fluctuating consumer loads. We cannot use identical equipment for both tasks. Doing so creates massive energy bottlenecks. Let us explore how network positioning dictates equipment selection.
These units operate as the heavy backbone of the electrical grid. Utility companies deploy them directly at generating stations and main transmission substations. Engineers design them for constant, steady, and maximum load capacity. When a power plant generates electricity, this equipment steps up the voltage for long-distance travel. We often refer to this specialized unit as a transmission transformer. It must handle immense stress without any operational breaks. They rarely see light load conditions. Therefore, they must perform flawlessly at their absolute peak rating.
Conversely, utility teams deploy distribution units at the very edge of the grid. You will find them outside industrial facilities, behind commercial complexes, and on residential street poles. Engineers design them to handle varying diurnal loads. Consumer power demand spikes in the morning and evening. It drops significantly overnight. These units must survive these frequent fluctuations without failing. A localized grid transformer connects directly to the end user. It steps down the transmission voltage to a safe, usable level for everyday machinery and household appliances.
Specification engineers require a rigorous voltage transformer comparison framework. Understanding these seven dimensions prevents costly specification errors. The core power transformer vs distribution transformer debate always comes down to these technical parameters.
Voltage handling capabilities dictate the primary separation between these two asset classes.
Power Units: These handle high voltage applications exclusively. Ratings typically sit at 33kV, 66kV, 110kV, 220kV, and extend beyond 400kV. Their handling capacities generally exceed 200 MVA.
Distribution Units: These manage medium to low voltage applications. Standard ratings include 11kV, 6.6kV, 3.3kV, 415V, and 230V. Their capacities typically remain under 200 MVA.
Common Mistake: Do not oversize a distribution unit just to build a safety margin. Oversizing leads to permanent inefficiency at lower voltage classes.
Load profiles define how hard the equipment works throughout a 24-hour cycle.
Power units operate at a nearly constant 100% load. Grid operators run transmission lines at maximum capacity to ensure grid stability. The equipment expects this steady state. It thrives under continuous thermal load.
Distribution units operate under cyclical, highly fluctuating loads. A residential block draws peak power at 6:00 PM. It draws almost nothing at 3:00 AM. These units rarely reach 100% capacity simultaneously. They must remain stable across dynamic peak and off-peak cycles.
Engineers calculate efficiency targets based on the expected load profile.
Because transmission assets run constantly at full capacity, designers engineer them to achieve maximum efficiency at or near 100% load. They do not optimize for low-load scenarios.
You will notice the power transformer difference right here. Distribution units face a different reality. They sit at low loads for many hours. Therefore, manufacturers design them for maximum efficiency at 50% to 70% load. This specific tuning accounts for long off-peak periods. It ensures the unit remains highly efficient throughout an average day.
Understanding internal energy loss is critical for technical evaluation.
Since power units run constantly at full capacity, copper losses become the primary engineering challenge. Copper losses vary based on the actual load. At 100% load, copper heating presents a massive hurdle. Engineers focus heavily on advanced winding techniques to mitigate this heat.
Distribution units remain connected to the grid 24/7, even at zero load. When no consumers draw power, the core remains energized. The distribution transformer difference centers on minimizing iron (core) losses. Continuous core losses drain massive amounts of energy over a 30-year lifespan. Manufacturers use high-grade silicon steel cores to keep these passive losses extremely low.
Physical constraints often dictate which equipment you can install.
Power units feature a massive physical footprint. They require dedicated spatial planning and heavy civil engineering. Their constant maximum load generates immense heat. They require advanced cooling methods like ONAF (Oil Natural Air Forced), OFAF (Oil Forced Air Forced), or ODAF (Oil Directed Air Forced). You must install external radiator banks and cooling fans.

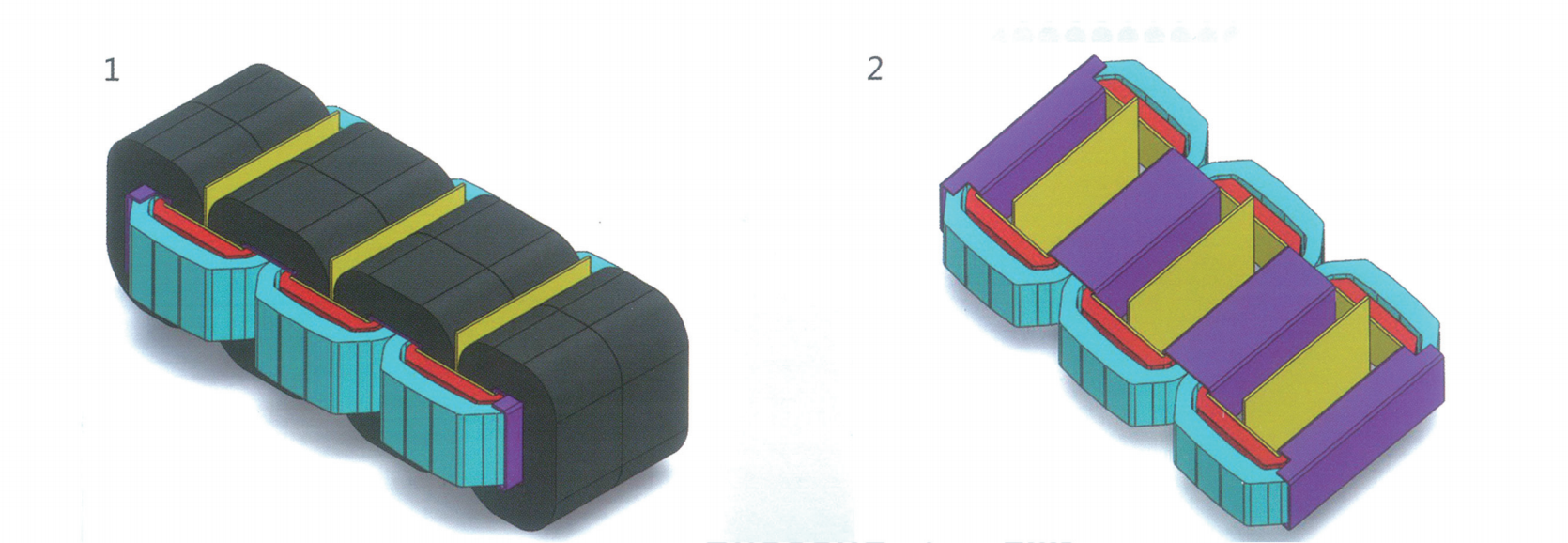

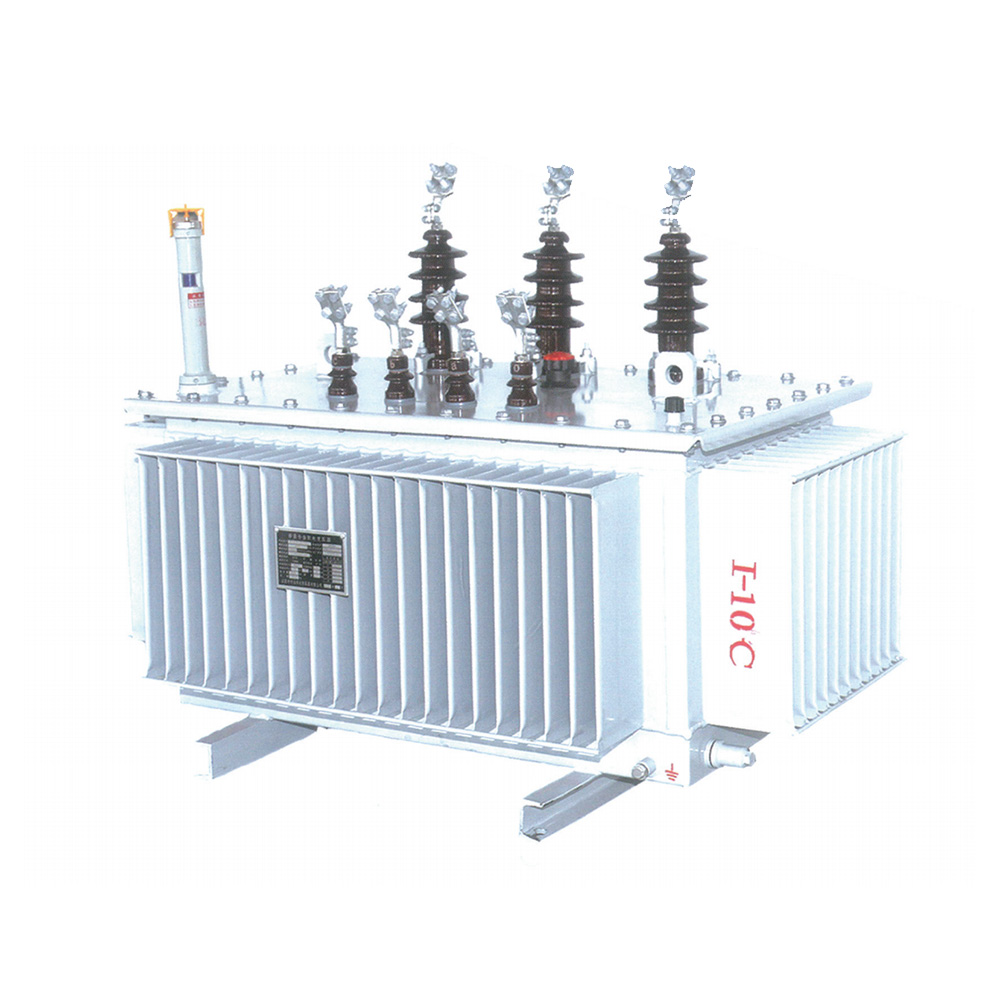

Distribution units are compact. Utility teams often mount them on street poles or concrete pads. They generate less extreme heat due to their lower average loads. They typically use simpler, passive cooling methods like ONAN (Oil Natural Air Natural). This plug-and-play nature makes them ideal for crowded urban spaces.
Electrical configurations differ based on grid requirements.
Power units typically utilize Star-Delta or Delta-Delta configurations. High-voltage transmission lines rarely require a neutral wire. The primary goal is moving raw three-phase power efficiently across long distances.
Distribution units typically rely on Delta-Star configurations. The Star secondary connection is mandatory here. It provides the crucial neutral wire required for standard 3-phase, 4-wire consumer systems. Without this neutral wire, we could not safely supply single-phase voltage to residential homes or office lighting systems.
Global regulatory bodies treat these two classes differently during testing.
Depending on your regional market, you must navigate different standard frameworks. The ANSI/IEEE C57 series and IEC 60076 dictate strict testing protocols. Power units undergo rigorous impulse voltage tests and extreme temperature rise validations. Distribution units face stricter scrutiny on "all-day efficiency" metrics and no-load loss limits.
Best Practice: Always request factory acceptance test (FAT) certificates mapped directly to your specific regional IEC or IEEE standard.
Transformer Technical Specifications Summary
| Evaluation Feature | Power Units | Distribution Units |
|---|---|---|
| Voltage Range | High Voltage (>33kV to 400kV+) | Medium/Low Voltage (<33kV) |
| Efficiency Target | Peak efficiency near 100% load | Peak efficiency at 50-70% load |
| Primary Loss Focus | Copper losses (load-dependent) | Iron/Core losses (continuous) |
| Cooling Requirements | Complex (ONAF, OFAF, ODAF) | Simple/Passive (ONAN) |
| Secondary Connection | Usually Delta (no neutral needed) | Star (provides neutral for consumers) |
Theory only goes so far. We must examine practical transformer use cases to understand proper application matching.
Large manufacturing facilities often require a dedicated substation. Steel mills, chemical plants, and automotive factories draw immense power. A heavy-duty distribution unit usually handles standard machinery. However, if an industrial plant requires a massive, steady power draw for continuous smelting furnaces, engineers might specify a smaller power transformer. The continuous, unyielding load profile makes the power unit more efficient in this specific industrial scenario.
Solar and wind farms present unique challenges. They require specialized step-up transformers. These units bridge the awkward gap between distribution-scale generation and high-voltage power transmission. Solar inverters output low voltage. The step-up unit must elevate this immediately for the main transmission grid. These units endure rapid load changes based on weather conditions. Engineers must specify robust designs that borrow features from both transformer categories.
Office towers, shopping malls, and hospitals rely entirely on standard distribution units. Success criteria in urban environments revolve around spatial constraints and noise pollution. You cannot install a massive, roaring power unit next to a hospital wing. Compact, pad-mounted distribution units provide the necessary local step-down safely. They run quietly, fit perfectly into basement vaults, and easily handle the fluctuating daily loads of commercial tenants.
Procurement goes beyond technical specifications. You must navigate real-world logistical constraints. Ignoring these realities will derail your project timeline.
Global supply chain constraints impact heavy electrical equipment severely. Large power transformers are entirely custom-built assets. Their engineering, winding, and testing phases are complex. Currently, lead times for these massive units range from 12 to 24 months. You must plan years ahead. Conversely, standard distribution transformers are highly commoditized. Manufacturers often stock standard ratings. You can typically secure standard distribution units within 12 to 16 weeks.
Installation complexity scales with voltage class.
Rigging and Transport: Power units require specialized heavy-haul transport. You often need road closures and massive cranes for rigging. Distribution units arrive on standard flatbed trucks and deploy via basic forklifts.
Site Preparation: High-voltage assets require extensive civil engineering. You must pour massive reinforced concrete foundations. You also need dedicated oil containment pits. Distribution units are essentially plug-and-play on simple concrete pads.
Maintenance Requirements: Heavy grid assets demand continuous condition monitoring. Operators use Dissolved Gas Analysis (DGA) monitors to detect internal faults early. Distribution units generally require simple visual inspections, basic oil sampling, and routine bushing cleaning.
Evaluating your project needs requires a systematic approach. Do not guess your parameters. Follow this structured assessment.
Use this three-step decision flow to narrow your choices:
Determine the Voltage Requirement: Are you stepping up for long-distance transmission (>33kV) or stepping down for consumer use? This instantly categorizes your needs.
Analyze Load Fluctuation: Will the equipment run at a constant 100% load continuously? Or will it experience sharp daily peaks and long idle periods? Match your load curve to the correct efficiency target.
Assess Physical Constraints: Evaluate your installation site. Do you have room for external radiator banks and forced-air fans? Can the local roads support a 100-ton delivery?
Never finalize specifications in isolation. We strongly encourage engineers and procurement teams to collaborate with manufacturers early. Share your single-line diagrams (SLDs) and detailed load schedules. Technical sales engineers can spot design flaws before manufacturing begins. They will help you balance physical constraints with your electrical requirements.
Specifying electrical grid equipment demands extreme precision. The fundamental difference lies in their intended environment. Power transformers conquer steady-state, high-voltage transmission challenges. They deliver peak efficiency when pushed to their absolute limits. Meanwhile, distribution units master the volatile, localized loads of everyday consumers. They minimize passive energy loss during long off-peak hours. Understanding these distinct engineering profiles prevents disastrous infrastructure failures. Do not leave your network stability to chance. Contact our sales engineering team today for technical sizing assistance, standard compliance verification, or customized project quotations.
A: Technically, you could attempt it, but it is highly inefficient and dangerous. Their load profiles mismatch entirely. Distribution units are not optimized for 100% continuous load. Running one constantly at maximum capacity generates extreme heat, degrades the internal insulation rapidly, and drastically shortens its operational lifespan.
A: The B2B price gap is massive. High-voltage power units are multi-million dollar, custom-engineered assets requiring extensive raw materials. Distribution units are highly commoditized and significantly cheaper. However, distribution pricing still varies based on the specific KVA rating and whether you specify copper or aluminum windings.
A: Power units use a commercial efficiency metric, optimizing for performance at near 100% load. Distribution units utilize an "All-Day Efficiency" metric. This calculates performance over a full 24-hour cycle, prioritizing high efficiency during the 50-70% load periods typical of consumer daily routines.
A: Power units demand continuous, active condition monitoring, including automated Dissolved Gas Analysis (DGA) and live bushing monitors. A failure here threatens the whole grid. Distribution units are simpler. They generally only require periodic visual inspections, infrared thermography, and basic annual oil testing.
